A 600 HP supercharged
DOHC equipped F-150!
Professional down to the
last detail, these images speak for themselves!
We consider this truck
an ultimate sleeper!
One of only two DOHC F-150s we have dealt
also runs a supercharged DOHC engine.
Yes, that is a Whipple
engine stuffed in there!
A fully appointed
You can't argue with the
mods. I dont think there is any part of my truck that I hasnt
personalized for better performance, handling, comfort or arguably,
2002 F-150, XLT, True Blue Metallic.
Dark Graphite interior with power, heated, cloth covered Captains
Roush Front Bumper and complete ground effects kit.
Harley Davidson Edition upper and lower Grilles
Clear Corners and Headlights
Lightning Third Tail
Astro Bed Lid and Bed Rug
Chromed Lightning Wheels
Hankook 295-45x18 tires.
Front lowered 4 with Belltech 2 spindles, custom springs, Bilstein
Rear lowered 6 with flip kit, one leaf removed, Velvet Ride shackles,
air shocks in the stock
location plus two additional shocks and my own traction bars.
Lightning Rear Sway Bar

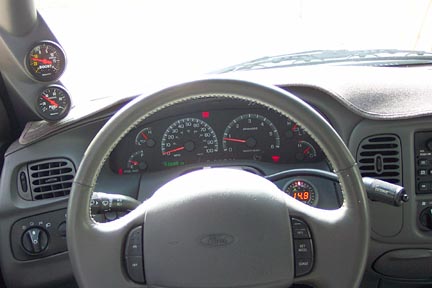

Expedition Console with Temperature and Oil Pressure gauges in custom
Pillar Pod with Vacuum/Boost and Fuel Pressure gauges
Innovate Wide Band installed in dash
32 valve 5.4 engine
CP +.020 forged pistons
Manley H Beam Rods
Mod Max Crank
00 Navigator heads, street ported, gasket matched, 5 angle valve job
Mild cams again by Dima Elgin (gotta keep it CA smog legal)
Stock Exhaust Manifolds, custom made right side is a mirror image of the
All stainless true duals with X, all mandrel bent, inside purge TIG
Magnaflow OBD II high flow cats, primaries still in place
54 all stainless, 3 bore steelpack mufflers (very quiet but low back
Custom made intake manifold that originally accepted the OE Ported
Eaton, now has
been further modified to accept a Whipple.
Whipple Supercharger at 14 PSI
L&S Oil Separator
325 LPH single Bosch Fuel Pump (now maxed)
Single Blade Throttle Body
SCT BA-2400 MAF
Siemens 60# injectors
AN 8 Fuel supply line with canister type filter
AN 6 Fuel return line
Dual OE Heat Exchangers with Fans
DPC Triple Plate (Kevlar), stock stall "Bullet Proof"
